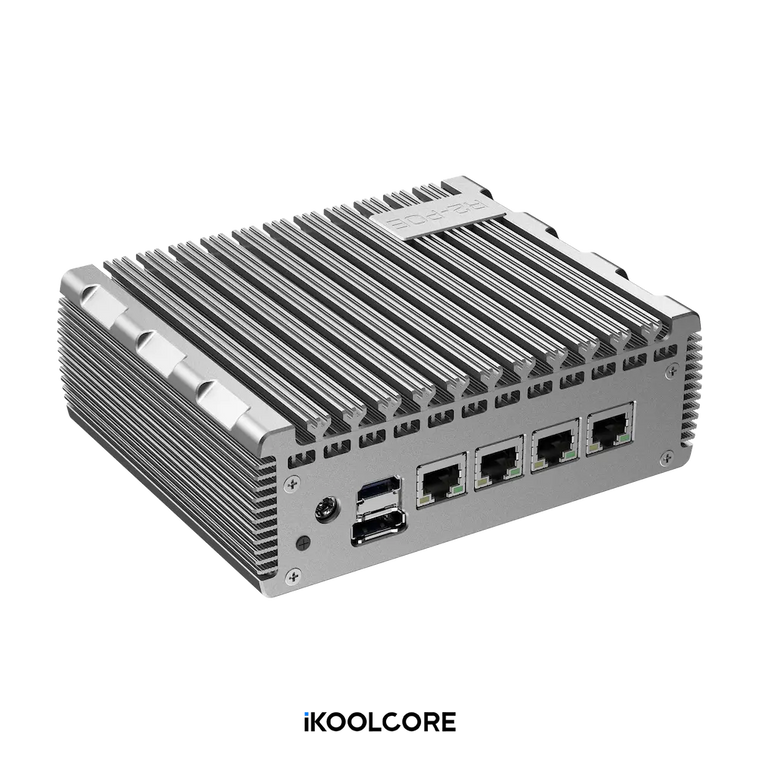

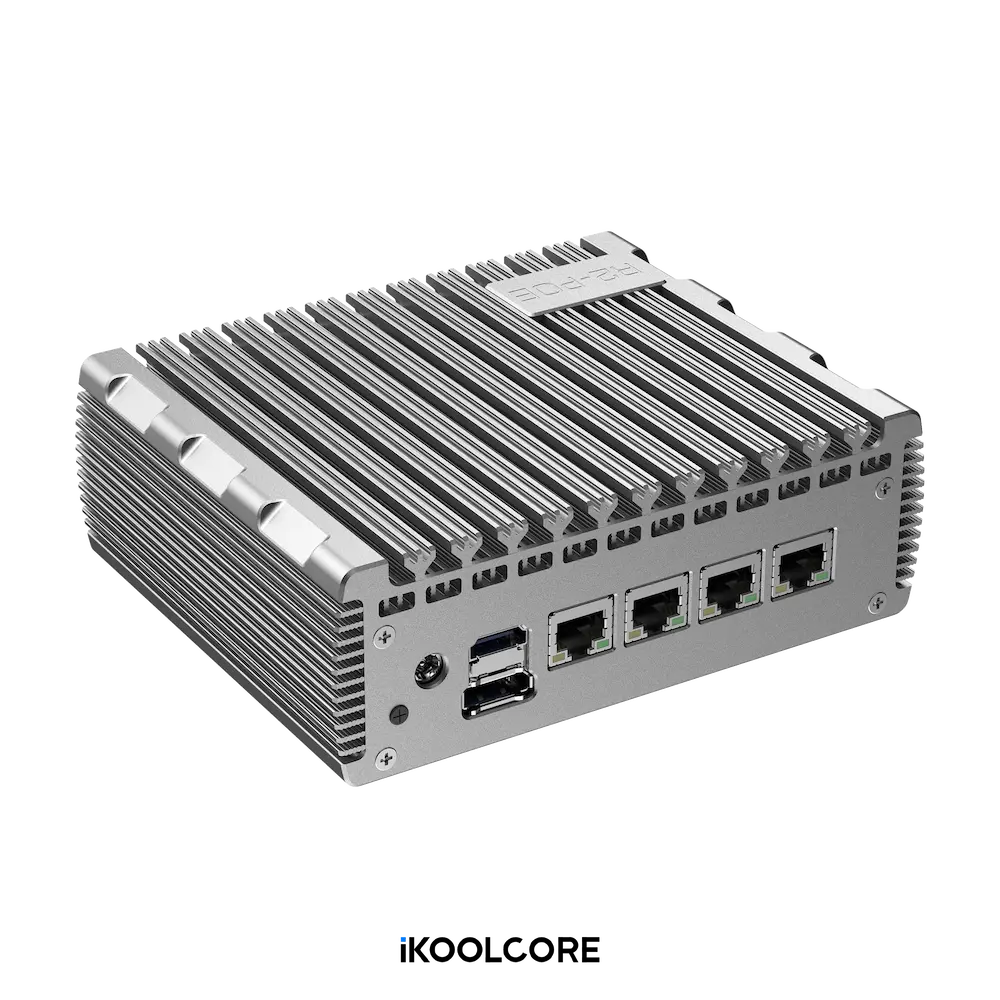

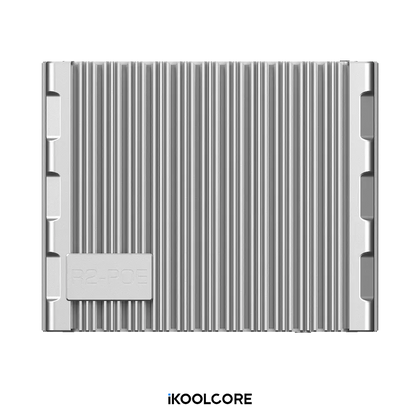

R2 POE - Fanless POE Firewall

Processor

Intel Alder Lake-N N100, i3-N305 Optional

AMI EFI BIOS

Memory

1 x DDR5 SO-DIMM，Max Support 48GB[Tested]

Storage

1 x M.2 M-Key 2280 (NVMe PCIe3.0 x2 Protocal)

1 x SATA3.0 Slot，2Pin 5V Power Pin

Display

1 x HDMI2.0，Support 4096x2160@60Hz

1 x DP，Support 7680x4320@60Hz

1 x USB-C，Support DP 7680x4320@60Hz & USB3.2 Gen2

I/O

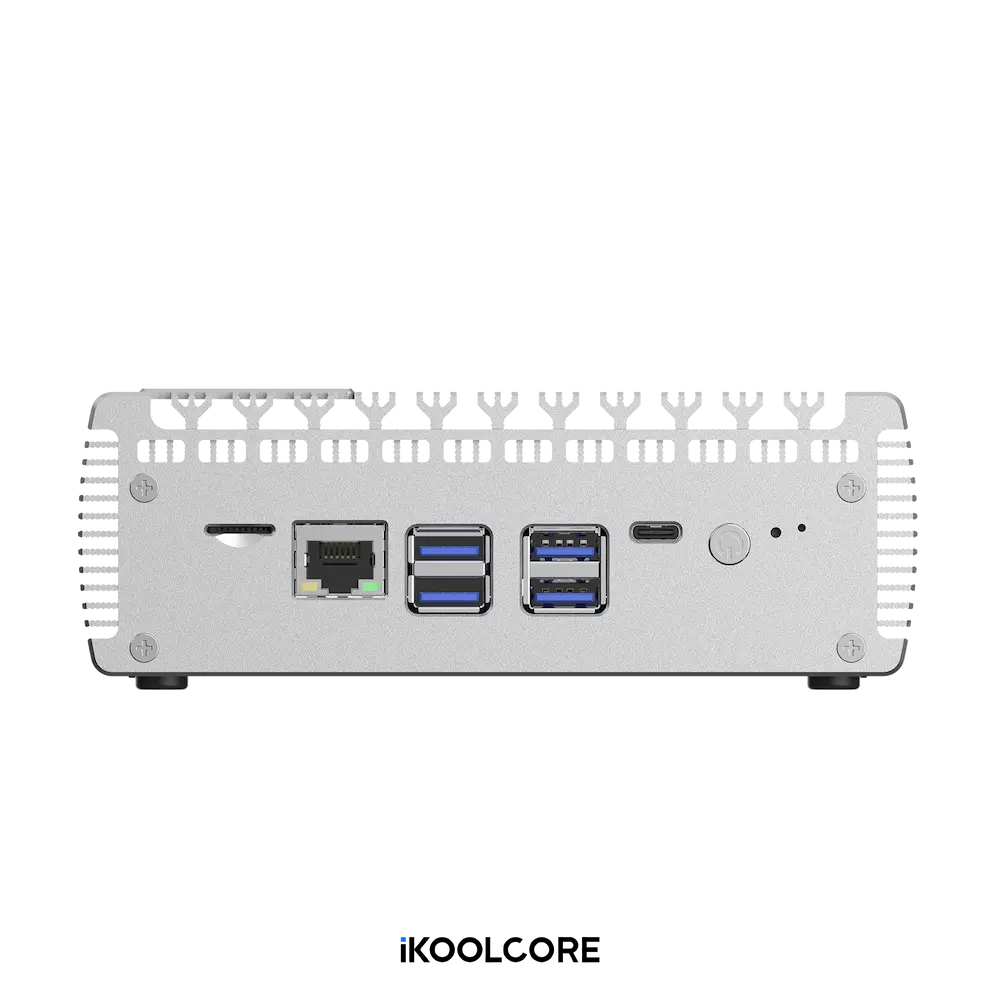

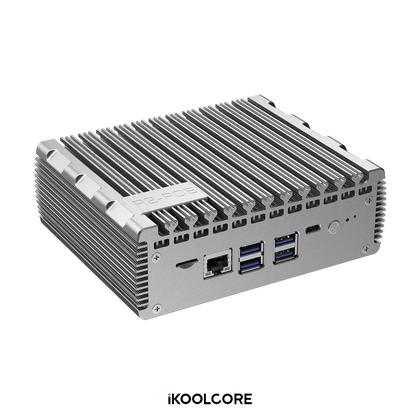

Power on btn、Reset btn、2 x USB3.0、2 x USB2.0、TF Slot(bootable)

DC JACK、HDMI+DP、Type-C

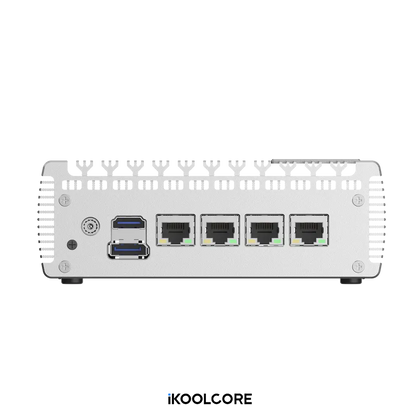

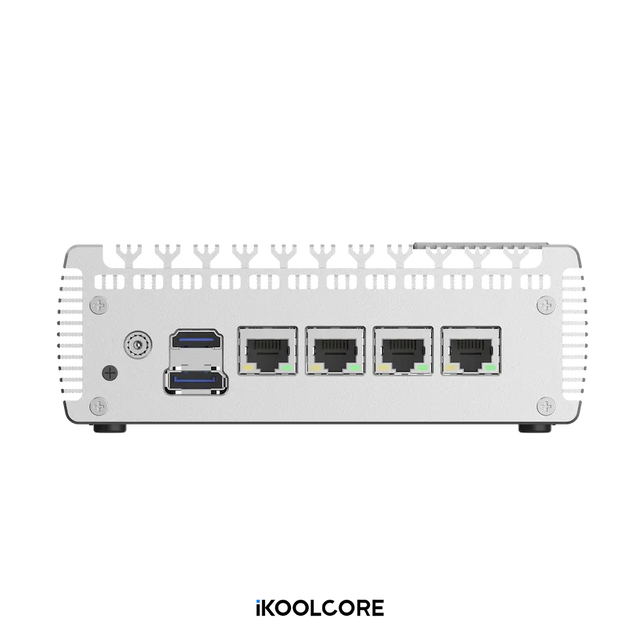

4 x LAN（3 x Intel 226-V(eth0,eth1,eth2)，1 x RTL8156B(eth3)，
POE 48V/15W Optional）、1 x RJ45 console

Expansion

External TPM2.0 is optional and not included by default. The default configuration uses the CPU's built-in TPM2.0.

1 x MiniPCIe（PCIe+USB2.0+SATA3.0 Protocols, Support WIFI/BT/4G/mSATA Modules）, Micro SIM Slot

5 x RS232 Pin Headers, Pitch 2.0mm；8 x GPIO

1 x 4Pin PWM CPU FAN

Power

DC IN 12V

Temperature

Operating temperature: -20°C to +60°C; Operating humidity: 5% to 90%.

Storage temperature: -40°C to +85°C; Storage humidity: 5% to 90%.

Systems

Windows10，Windows11，Linux

Dimensions

120x120 mm for MB

Net weight

120g for MB, and about 1Kg for Unit
